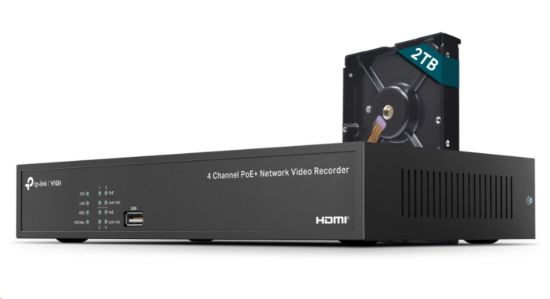

TP- Link VIGI NVR1004H- 4P- 2TB, videorekordér, 4 channels, 4xPoE, 1xSATA, 1x100Mb/ s LAN, 2xUSB2.0, 1xHDMI, 1xVGA Typ příslušenství ke kamerám:Externí úložiště pro kamery Výrobce: TP-link Dostupnost: na objednávku - obvykle (14 dnů). Kód: 1841004 Typové označení výrobce : VIGI NVR1004H-4P-2TB GTIN (EAN): 48952525071710 dodací lhůta : 1-2 dny 13 002,45 Kč bez DPH Množ.: Koupit Vlastní wishlist OK Přidat k oblíbeným Přidat k porovnání Doporučit @ VIGI 4kanálový PoE+ síťový videorekordér 4kanálový živý náhled a výstup videa 4K HDMI 4× 10/100 Mb/s PoE+ Porty s 53 W PoE rozpočtem? 2-ch @ 8MP/ 4-ch @ 4MP dekódovací schopnost§ Synchronní přehrávání 4 kanálů† Šířka pásma 80 Mb/s pro příchozí a 60 Mb/s pro odchozí data 1× rozhraní SATA a 1 až 10 TB (1× 2TB HDD předinstalovaný) Kompresní technologie H.265+ Současný výstup HDMI a VGA Vzdálené sledování VIDEO AND AUDIO IP Video Input 4-Channel Incoming Bandwidth 80 Mbps Outgoing Bandwidth 60 Mbps HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz VGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz Video Output Mode HDMI/VGA Simultaneous Output Multi-View Display 1/4 DECODING Audio Compression G.711A/G.711U/G.726 Video Compression H.265+/H.265/ H.264+/H.264 Record Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF Synchronous Playback 4-Channel† Capability • 25fps:2-ch @ 8MP, 4-ch @ 4MP• 30fps:4-ch @ 4MP, 3-ch @ 5MP RECORD MANAGEMENT Record Mode • Manual Recording• Scheduling Recording• Motion Detection Recording Playback Mode • Instant Playback• Regular Playback• Tag Playback• Event Playback Backup Mode • Regular Backup• Video Clip Backup Playback Function • Play• Pause• Stop• Fast Forward• Fast Backward• Play By Frame• Full Screen• Video Clip• Export Clip• Digital Zoom• Lock Recording• Audio On/Off NETWORK Protocol UPnP (Plug and Play), NTP (Network Timing) Mobile Phone Access Android, iOS Web Browser Chrome (57+), Firefox (52+), Edge (91+) Interoperability ONVIF, CGI EXTERNAL INTERFACE Network Interface 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface USB Interface 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port Audio Interface 1, Audio In; 1, Audio Out Alarm In/Out N/A Serial Interface N/A Power 1× DC Jack Reset Button 1 Speaker N/A eSATA N/A HDMI 1 VGA 1 HARD DISK SATA 1 SATA Interface Capacity • Up to 10 TB Capacity for Each HDD• 1 × 2TB HDD Preinstalled POE Standard 802.3at/af Compliant Interface 1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface PoE Budget 53 W? Available for All PoE+ Ports, 30 W Max per Port ALARM General Alarm • Motion Detection• Video Tampering• Line-Crossing Detection• Intrusion Detection• Region Entering Detection• Region Exiting Detection• Object Abandoned/Removal Detection• Vehicle Detection• Human Detection• Smart Frame Anomaly Alarm • Video Loss• Offline and IP Conflict• Disk Exception• Login Exception Alarm Linkage • Recording• White Light Alarm• Buzzer• Log• Audible Alarm GENERAL Storage Temperature -40–70 °C Storage Humidity 10%~90% RH Non-Condensing Package Contents • VIGI Network Video Recorder• Power Adapter• Power Cables• Rubber Feet• Mouse• Quick Installation Guide Working Temperature • NVR: -10–55 °C• Power Adapter: 0–40 °C Working Humidity 10%~90% RH Non-Condensing Dimensions( W X D X H ) 246.2 × 148.2 × 45 mm Power Supply 53.5V DC/1.31A Power Consumption • 4.25 W (Without Disk)• 13.10 W (With Disk) Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
