TP- Link OMADA průmyslový switch IES206GPP (4xGbE, 1xGbE/ SFPcombo, 1xSFP, 3xPoE+, 1xPoE++, 120W, DIN, IP40, fanless)

Name: TP- Link OMADA průmyslový switch IES206GPP (4xGbE, 1xGbE/ SFPcombo, 1xSFP, 3xPoE+, 1xPoE++, 120W, DIN, IP40, fanless)
SKU: 324480
Price: 3672.55 CZK
Availability: InStock

Provedení:DIN Rail; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), DHCP snooping, L2, Web management/Smart switch; Technologie:Gigabit Ethernet 1000Mbps, Gigabit ethernet + Gigabit optika; Počet portů LAN:6; Přenosová rychlost LAN (Mb/s):1000; Podporované standardy PoE:802.3af, 802.3at, 802.3bt

Výrobce: TP-link

Dostupnost: 1 ks skladem

Kód: 324480

Typové označení výrobce : IES206GPP

GTIN (EAN): 1210002602050

dodací lhůta : 1-2 dny

3 672,55 Kč bez DPH

Množ.:

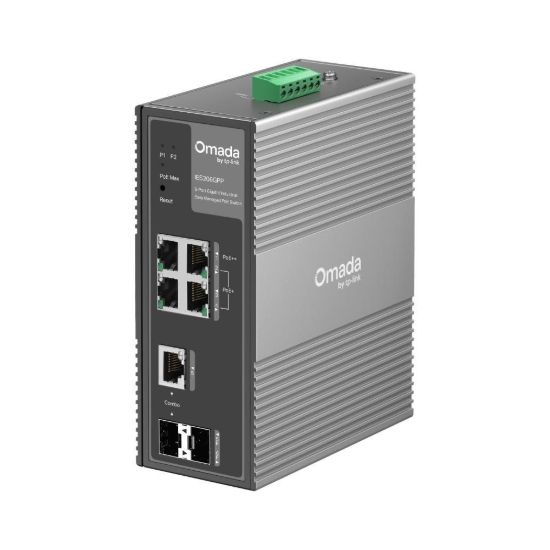

TP-Link OMADA průmyslový switch IES206GPP

Omada 6portový gigabitový průmyslový Easy Managed Switch s 3 porty PoE+ a 1 portem PoE++

4× gigabitové RJ45 porty (1× PoE++, 3× PoE+)
1× gigabitový kombinovaný RJ45/SFP slot, 1× gigabitový SFP slot
Napájecí rozpočet 120 W* s až 60 W pro PoE++ port
Profesionální průmyslový design: provozní teplota -40~75°C, ochrana proti přepětí 6 kV a duální napájení 1+1
Bohaté funkce: PoE až do vzdálenosti 250 m (820 ft)**, VLAN, QoS a STP/RSTP
Centralizovaná správa v cloudu přes web nebo aplikaci Omada†
Odolné hliníkové pouzdro s krytím IP40 a možnost montáže na DIN lištu nebo na stěnu

Stránky produktu: https://www.omadanetworks.com/cz/business-networking/omada-switch-industrial/ies206gpp

Technické specifikace

HARDWARE FEATURES
Interface	• 1× 10/100/1000 Mbps PoE++ RJ45 Ports • 3× 10/100/1000 Mbps PoE+ RJ45 Ports • 1× Gigabit SFP/RJ45 Combo Slot • 1× Gigabit SFP Slot • Auto-Negotiation/Auto MDI/MDIX
Fan Quantity	Fanless
Installation	• DIN-rail mounting • Wall mounting
Physical Security Lock	?
Power Supply	12-57V 1+1 Redundant DC Power Input
PoE Ports (RJ45)	• Standard: 802.3af/at/bt compliant • PoE++ Ports (802.3af/at/bt PoE): 1 Port, up to 60W per port • PoE+ Ports (802.3af/at PoE): 3 Ports, up to 30W per port • PoE Budget: - 60W (Input: 12V / 7.0A - 21V / 3.5A)) - 120W (Input: 21V / 6.5A - 57V / 2.3A)
Dimensions ( W x D x H )	6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm)
Surge Protection	• ±6 kV in common mode for Ethernet ports • ±4 kV in common mode for DC power input ports
PERFORMANCE
Switching Capacity	12 Gbps
Packet Forwarding Rate	8.93 Mpps
MAC Address Table	8K
Packet Buffer Memory	4 Mbit
Jumbo Frame	15 KB
SOFTWARE FEATURES
Quality of Service	• 802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rate Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control
L2 Features	• Link Aggregation - Static Link Aggregation - Up to 2 aggregation groups and up to 4 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP • Spanning Tree - STP (802.1d) - RSTP (802.1w)
L2 Multicast	• IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave
VLAN	• MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID
Transmission Method	Store-And-Forward
Management Features
Omada App	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requires the use of Omada Cloud-Based Controller
Management Features	• Web-based GUI • DHCP Client • Cable Diagnostics • Digital Diagnostic Monitoring (DDM) • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration†
OTHERS
Certification	FCC, CE, RoHS
Package Content	• IES206GPP • DIN-Rail Mounting Bracket • Wall-Mounting Plates • Installation Guide
Environment	• Operating Temperature: -40?~75? (-40?~167?) • Storage Temperature: -40?~85? (-40?~185?) • Operating Humidity: 5%~95% non-condensing • Storage Humidity: 5%~95% non-condensing
