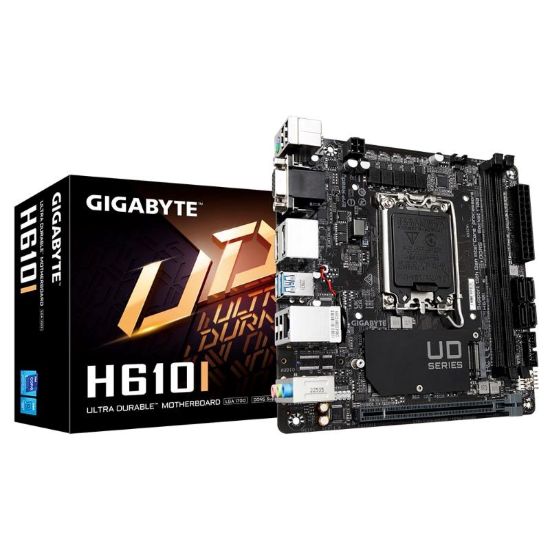

GIGABYTE MB Sc LGA1700 H610I, Intel H610, 2xDDR5, 2xDP, 1xHDMI, 1xVGA, Mini- ITX

CPU

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core™, Pentium Gold and Celeron Processors
* Please refer to "CPU Support List" for more information.
L3 cache varies with CPU

Chipset

Intel H610 Express Chipset

Memory

13th Generation Intel Core™ i9/i7 Processors:
- Support for DDR5 5600/5200/4800/4400 MT/s memory modules
13th Generation Intel Core™ i5/i3 and 12th Generation Intel Core™, Pentium Gold and Celeron Processors:
- Support for DDR5 4800/4400 MT/s memory module
2 x DDR DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)

Onboard Graphics

Integrated Graphics Processor-Intel HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3.
- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version.
(Graphics specifications may vary depending on CPU support.)
Support for up to 3 displays at the same time

Audio

Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

Intel GbE LAN chip (1 Gbps/100 Mbps)

Expansion Slots

1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)

Storage Interface

Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)
- 4 x SATA 6Gb/s connectors

USB

Chipset:
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports on the back panel
Chipset+USB 2.0 Hub:
- 2 x USB 2.0/1.1 ports available through the internal USB header

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
1 x chassis intrusion header

Back Panel Connectors

1 x PS/2 keyboard/mouse port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x D-Sub port
2 x DisplayPorts
1 x HDMI port
1 x RJ-45 port
3 x audio jacks

I/O Controller

iTE I/O Controller Chip

H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.

BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features

Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- @BIOS
- EasyTune
- Ambient LED
- Smart Backup
- System Information Viewer
Support for Q-Flash
Support for Xpress Install

Bundled Software

Norton Internet Security (OEM version)
LAN bandwidth management software

Operating System

Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor

Mini-ITX Form Factor; 17.0cm x 17.0cm
