| Coldplate technology |
Fifth generation |
| Coldplate material |
Copper |
| Additional sound dampening |
Integrated |
| Thermal paste |
Pre-applied, high thermal conductivity |
| Sockets supported (Intel) |
1851, 1700, 1200, 1150, 1151, 1155, 1156, 1366, 2011, 2011-v3, 2066 (via included 2011-v3 kit) |
| Sockets supported (AMD) |
AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+, TR4 (via included bracket in AMD Threadripper box)
“CPU brackets and screws may vary due to manufacturer revisions.” |
| Tube length |
400 mm |
| Tube material |
Sleeved low-permeability rubber tubes |
| Fittings, block side |
Durable metal fittings, non-removable |
| Fittings, radiator side |
Durable metal fittings, G 1/4" thread |
| Fan control |
Integrated dual mode |
| Warranty |
5-year pre-expansion (Post-expansion, only individual components of the Fractal Design Celsius S24 or S36 are covered) |
| Fan specifications |
| Fan type |
Fractal Design Dynamic X2 GP-12 PWM |
| Rotational speed |
500-2,000 RPM |
| Bearing |
LLS |
| PWM control |
Yes |
| Acoustical noise (full speed) |
32.2 dB (A) |
| Maximum air flow |
148.8 m3/h | 87.6 CFM |
| Maximum static pressure |
2.30 mm H2O |
| Input voltage |
12 V |
| Maximum input current |
0.2 A |
| MTBF |
>100,000 hours |
| Pump specification |
| Rotational speed |
1,950-3,150 RPM |
| Bearing type |
Ceramic bearing and shaft |
| PWM control |
Yes |
| Acoustical noise (full speed) |
20,0 dB (A) |
| Maximum pressure, 50°C |
1m H2O | 1.45 PSI |
| Input voltage |
12 V |
| Input current (without fans) |
0.15 A |
| Rated input power (with fans) |
9 W |
| MTTF |
>50,000 hours |
| Radiator specification |
| Dimensions |
403 x 123 x 30 mm |
| Housing material |
Aluminum |
| Fin material |
Aluminum |
| Port threads |
G 1/4" |
| Fan screw threads |
UNC 6-32 |
| Other |
| Package contents |

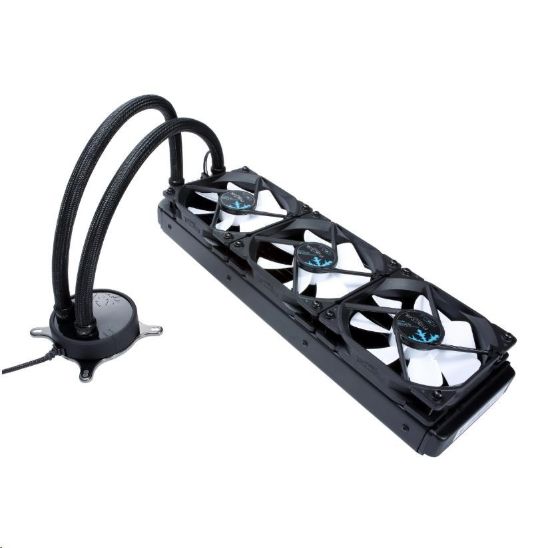

Celsius S36 system, 3x Dynamic X2 GP-12 PWM fans, Multilingual user manual, Mounting hardware for all listed sockets, Fan and radiator mounting screws |
| Package Dimensions |
472 x 144 x 177 |
