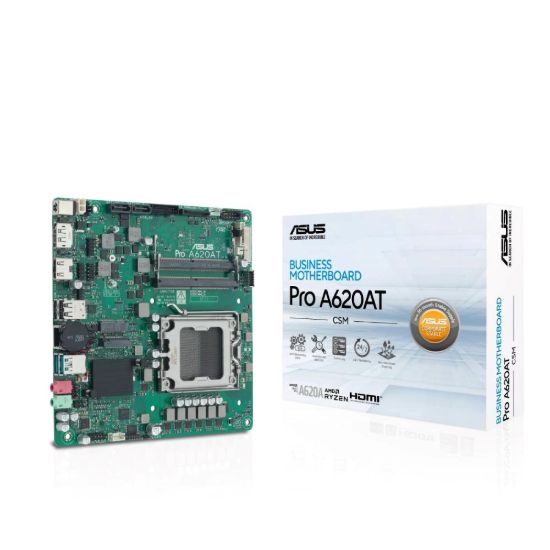

ASUS MB Sc AM5 PRO A620AT- CSM, AMD A620A, 2xDDR5 SODIMM, 1xHDMI, 1xDP, 1xLVDS, Thin Mini- ITX

CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
*CPU only support up to 65W
** Refer to https://www.asus.com/support/download-center/ for CPU support list.

Chipset

AMD A620A Chipset

Memory

2 x SO-DIMM slots, max. 128GB, DDR5, ECC and Non-ECC, Un-buffered Memory*
Dual channel memory architecture
ASUS Enhanced Memory Profile (AEMP)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
**Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort**
1 x HDMI™ port***
1 x LVDS connector
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.

Storage

Total supports 1 x M.2 slot and 2 x SATA 6Gb/s ports
AMD A620A Chipset
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
2 x SATA 6Gb/s ports

Ethernet

1 x RTL8111EPV-CG Ethernet(DASH LAN)
ASUS LANGuard

Wireless & Bluetooth

M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately.

USB

Rear USB (Total 4 ports)
2 x USB 10Gbps ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 8 ports)
1 x USB 10Gbps connector (supports USB Type-C)*
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
1 x USB 2.0 header support 1 additional USB 2.0 port
* USB Type-C power delivery output: max. 5V/3A

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

2 x USB 10Gbps ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x RTL8111EPV-CG Ethernet (DASH LAN)
2 x Audio jacks
1 x DC power connector (supports 19V)

Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power Related
1 x 2-pin +19V Power connector
1 x SATA power connector
Storage Related
1 x M.2 slot (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
1 x USB 2.0 header supports 1 additional USB 2.0 port
AIO System Related
1 x Stereo Speaker header
1 x DMIC header
Flat Panel Display Related
1 x Backlight Inverter Voltage Selection header
1 x FPD Brightness header
1 x Panel Voltage Selection header
1 x Panel Off header
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x COM Debug header
1 x LVDS connector
1 x M.2 slot (Key E)
1 x Speaker header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header

Special Features

ASUS Q-Design
- Q-LED Core
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- Box headers
Bespoke Motherboard Design & Business Focused Features
- ASUS Self-Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS Kit*
- BIOS EZ Deploy
- Anti-moisture coating
- 24/7 reliability
- Overcurrent protection
- G-sensor
* Please contact local FAE for Commercial BIOS kit.

Software Features

ASUS Exclusive Software
ASUS DriverHub
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS MyHotkey

Remote Management Features

IT Management software supported
- ASUS Control Center Express(ACCE)
Realtek 8111EPV Gigabit Ethernet
Desktop and mobile Architecture for System Hardware(DASH)

BIOS

256Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables
1 x SATA power cable
Miscellaneous
2 x I/O shields
Documentation
1 x ACC Express activation key card
1 x Quick start guide

Operating System

Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)

Form Factor

Thin Mini-ITX Form Factor
6.7”x 6.7” (17.0cm x 17.0cm)
