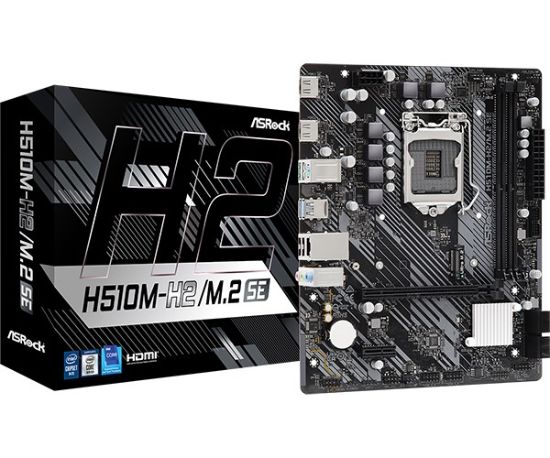

ASRock MB Sc LGA1200 H510M- H2/ M.2 SE, Intel H470, 2xDDR4, 2xHDMI, mATX

Unique Features

Rock-Solid Durability
- 4 Power Phase
EZ Update
- ASRock Auto Driver Installer

CPU

- Supports 10th Gen & 11th Gen Intel Core™ Processors (LGA1200)
- Supports Intel Turbo Boost Max 3.0 Technology

Chipset

- Intel H470

Memory

- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB**
- Supports Intel Extreme Memory Profile (XMP) 2.0
- 15µ Gold Contact in DIMM Slots

BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support

Graphics

- 2 x HDMI
Intel 11th Gen Processors support HDMI 2.0, HDCP 2.3 and max. resolution up to 4K 60Hz
Intel 10th Gen Processors support HDMI 1.4, HDCP 2.3 and max. resolution up to 4K 30Hz

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN

- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H

Slots

Intel 11th Gen & 10th Gen Processors:
- 1 x PCIe 4.0 x16 Slot (PCIE1)*
Intel H470 Chipset:
- 1 x PCIe 3.0 x1 Slot (PCIE2)**

Storage

Chipset:
- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors

- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

USB

- 6 x USB 3.2 Gen1 (4 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)

Internal I/O

- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

Rear Panel I/O

- 1 x PS/2 Mouse/Keyboard Port
- 2 x HDMI Ports
- 2 x USB 2.0 Ports
- 4 x USB 3.2 Gen1 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

Accessories

- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket

OS

- Microsoft Windows 10 64-bit / 11 64-bit

Certifications

- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

Form Factor

- Micro ATX Form Factor: 9.1-in x 7.36-in, 23.1 cm x 18.7 cm
